Line Plot#

[1]:

import matplotlib.pyplot as plt
from cartopy.crs import EqualEarth

import huracanpy
from huracanpy.plot import fancyline


# Load in a single track from example data
tracks = huracanpy.load(huracanpy.example_csv_file)
track = tracks.groupby("track_id")[0]

[2]:

# Set up a figure with a cartopy projection
ax = plt.axes(projection=EqualEarth())

# Show 10m wind speed with a colourscale
lc = fancyline(
    track.lon,
    track.lat,
    track.wind10,
    vmin=10,
    vmax=25,
    ax=ax,
)

plt.colorbar(lc, extend="both")
ax.coastlines()
ax.gridlines(draw_labels=["left", "bottom"])

[2]:

<cartopy.mpl.gridliner.Gridliner at 0x7ef659966270>

/home/docs/checkouts/readthedocs.org/user_builds/huracanpy/envs/v1.3.0/lib/python3.12/site-packages/cartopy/io/__init__.py:241: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/50m_physical/ne_50m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
../_images/examples_fancy_line_plot_2_2.png
[3]:

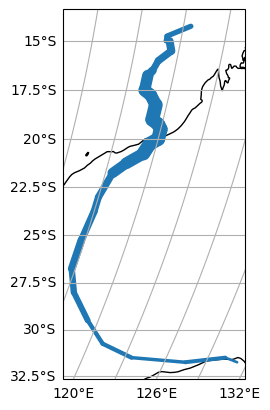

# Set up a figure with a cartopy projection
ax = plt.axes(projection=EqualEarth())

# Show 10m wind speed with linewidth
fancyline(
    track.lon,
    track.lat,
    linewidths=track.wind10,
    wmin=10,
    wmax=25,
    wrange=(1, 10),
)
ax.coastlines()
ax.gridlines(draw_labels=["left", "bottom"])

[3]:

<cartopy.mpl.gridliner.Gridliner at 0x7ef6599ba4e0>
../_images/examples_fancy_line_plot_3_1.png
[4]:

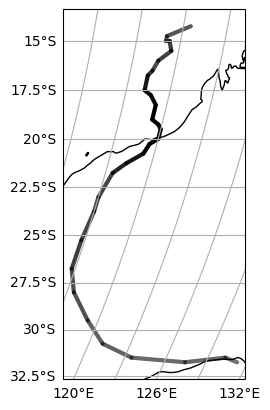

# Show 10m wind speed with alpha (transparency)
# Example with other arguments as single values for all lines

# Set up a figure with a cartopy projection
ax = plt.axes(projection=EqualEarth())

fancyline(
    track.lon,
    track.lat,
    alphas=track.wind10,
    amin=10,
    amax=25,
    arange=(0.5, 1),
    colors="k",
    linewidths=3,
    ax=ax,
)
ax.coastlines()
ax.gridlines(draw_labels=["left", "bottom"])

[4]:

<cartopy.mpl.gridliner.Gridliner at 0x7ef6597110a0>
../_images/examples_fancy_line_plot_4_1.png
[5]:

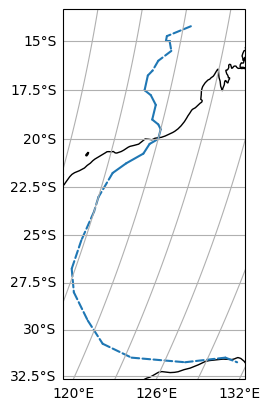

# Use the linestyle as categorical whether 10m wind is greater than a threshold
linestyles = ["--" if x < 20 else "-" for x in track.wind10]

ax = plt.axes(projection=EqualEarth())
fancyline(track.lon, track.lat, linestyles=linestyles, ax=ax)
ax.coastlines()
ax.gridlines(draw_labels=["left", "bottom"])

[5]:

<cartopy.mpl.gridliner.Gridliner at 0x7ef659785460>
../_images/examples_fancy_line_plot_5_1.png
