Additional information with the `info` module#

The info allows for the computation of individual attributes.

[1]:

import matplotlib.pyplot as plt
import seaborn as sns

import huracanpy

# Load tracks
filename = huracanpy.example_year_file
data = huracanpy.load(filename)

list(data.keys())  # Available attributes

[1]:

['track_id',
 'year',
 'month',
 'day',
 'hour',
 'i',
 'j',
 'lon',
 'lat',
 'slp',
 'zs',
 'wind10',
 'time']

Geographical attributes#

[2]:

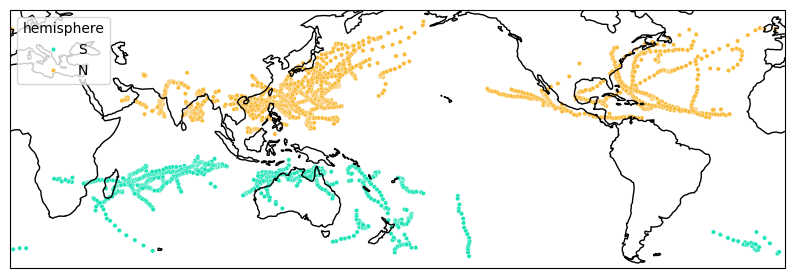

# hemisphere, can also be obtained with huracanpy.info.hemisphere
data = data.hrcn.add_hemisphere()
huracanpy.plot.tracks(
    data.lon, data.lat, intensity_var=data.hemisphere, scatter_kws=dict(s=10)
)

plt.show()

../_images/examples_utils_3_0.png

[3]:

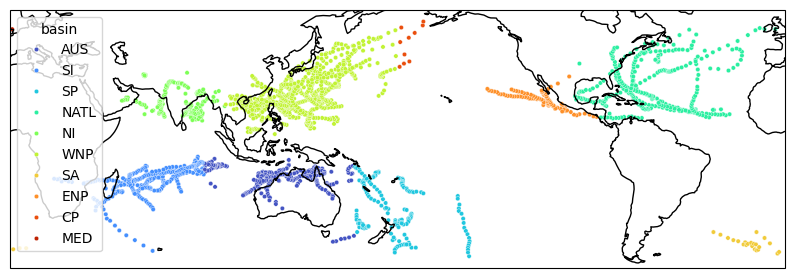

# basin, can also be obtained with huracanpy.info.basin
# (NB: Several convention available)
data = data.hrcn.add_basin()
huracanpy.plot.tracks(
    data.lon, data.lat, intensity_var=data.basin, scatter_kws=dict(s=10)
)

plt.show()

../_images/examples_utils_4_0.png

[4]:

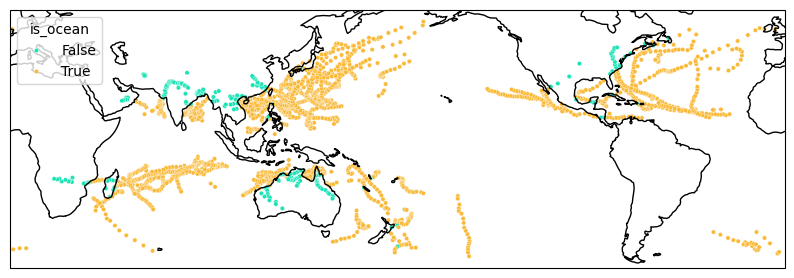

# is_ocean, can also be obtained with huracanpy.info.is_ocean
data = data.hrcn.add_is_ocean()
huracanpy.plot.tracks(
    data.lon, data.lat, intensity_var=data.is_ocean, scatter_kws=dict(s=10)
)

plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/huracanpy/envs/latest/lib/python3.14/site-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/10m_physical/ne_10m_ocean.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

../_images/examples_utils_5_1.png

[5]:

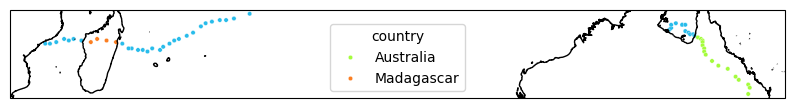

# country, can also be obtained with huracanpy.info.country
data = data.hrcn.add_country()
data_ = data.isel(record=slice(0, 60))
huracanpy.plot.tracks(
    data_.lon, data_.lat, intensity_var=data_.country, scatter_kws=dict(s=10)
)

plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/huracanpy/envs/latest/lib/python3.14/site-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/10m_cultural/ne_10m_admin_0_countries.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)
/home/docs/checkouts/readthedocs.org/user_builds/huracanpy/envs/latest/lib/python3.14/site-packages/cartopy/io/__init__.py:242: DownloadWarning: Downloading: https://naturalearth.s3.amazonaws.com/10m_physical/ne_10m_coastline.zip
  warnings.warn(f'Downloading: {url}', DownloadWarning)

../_images/examples_utils_6_1.png

[6]:

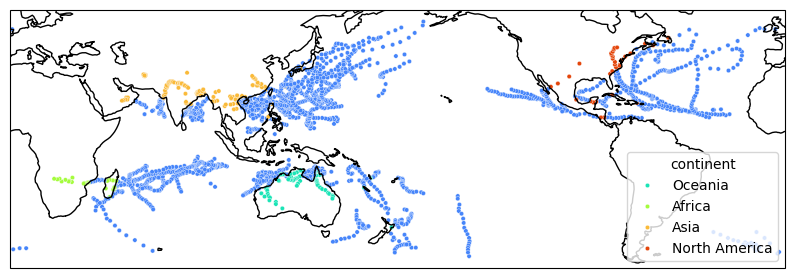

# continent, can also be obtained with huracanpy.info.continent
data = data.hrcn.add_continent()
huracanpy.plot.tracks(
    data.lon, data.lat, intensity_var=data.continent, scatter_kws=dict(s=10)
)

plt.show()

../_images/examples_utils_7_0.png

Time attributes#

[7]:

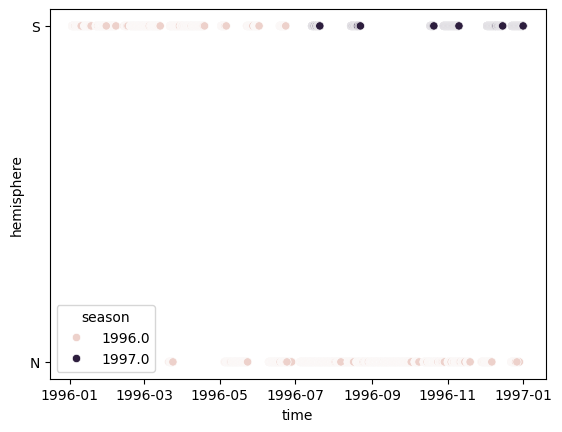

# Season. Can also be obtained with huracanpy.info.season
data = data.hrcn.add_season()
data = data.hrcn.add_hemisphere()
sns.scatterplot(data=data, x="time", y="hemisphere", hue="season")

plt.show()

../_images/examples_utils_9_0.png

Categories#

Categories are specific to tropical cyclones and can be found in the huracanpy.tc module A more generic function is available in huracanpy.info.get_category

[8]:

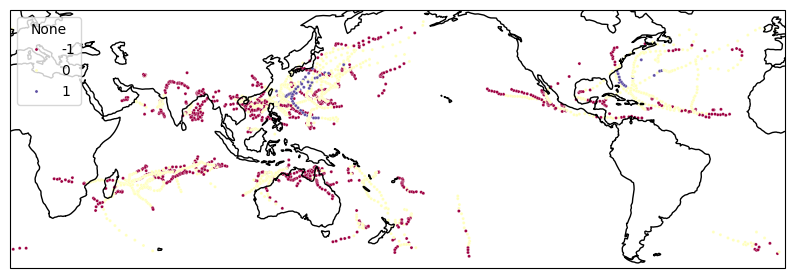

# sshs
sshs = huracanpy.tc.saffir_simpson_category(data.wind10)
huracanpy.plot.tracks(
    data.lon,
    data.lat,
    intensity_var=sshs,
    scatter_kws=dict(s=5, palette="Spectral"),
)

plt.show()

../_images/examples_utils_11_0.png

[9]:

# pressure category
pres_cat = huracanpy.tc.pressure_category(data.slp)
huracanpy.plot.tracks(
    data.lon,
    data.lat,
    intensity_var=pres_cat,
    scatter_kws=dict(s=5, palette="Spectral"),
)

plt.show()

/home/docs/checkouts/readthedocs.org/user_builds/huracanpy/envs/latest/lib/python3.14/site-packages/metpy/xarray.py:1330: UserWarning: Caution, pressure are likely in Pa, they are being converted to hPa for categorization. In future specify the units explicitly by passing slp_units="Pa" to this function or setting slp.attrs["units"] = "Pa"
  result = func(*bound_args.args, **bound_args.kwargs)

../_images/examples_utils_12_1.png
